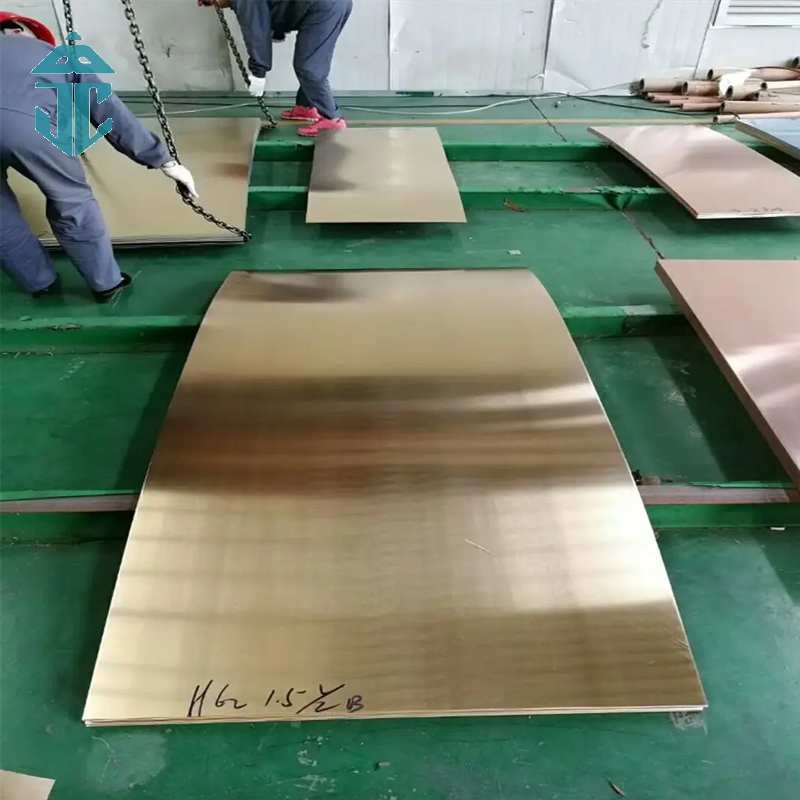

C27000 Copper Plate
Copper sheet has good process performance, mechanical properties, corrosion resistance, electrical and thermal conductivity. Copper sheet also has the advantages of low price and attractive color. It is one of the most widely used alloy materials in non-ferrous metals.
Copper is second only to silver in conductivity and thermal conductivity, and is widely used to make conductive and heat-conductingmaterials. Copper has good corrosion resistance in the atmosphere, sea water, some non oxidizing acids (hydrochloric acid, dilutesulfuric acid). alkali, salt solutions and a variety of oraanic acids (acetic acid. citric acid). and is used in the chemical industry.
Uses: It has a wide range of uses, such as water tank belts, medals and various complex shaped punching products, small hardware parts, etc. With the increase of zinc content, they can withstand hot processing well. It is mostly used for various parts of machinery and electrical appliances, stamping parts and musical instruments.
+86 13182768889
wxbjc05@bjcmetal.com
Contact Us

◉ Product Details

Product name Copper Plate/ Copper Sheet
StandardGB/T2058-2008,GB/T18813-2002,GB/T20254-2006,GB/T5231-2001,etc
MaterialC10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,
C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200,
C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000,
C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800,
C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200,
T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1,etc
Length1000mm~12000mm,etc
Width50mm~2500mm,etc
Thickness0.3mm~100mm,etc
Surfacemill,polish,bright,checkered,mirror,brush,antique
Delivery Timewithin 7-15 days
AdvantageCE,ISO 9001, SGS, etc
National Copper Grades And Standards Comparison Table
CNGEREURINTUSAJPN
GBDINENISOUNSJIS
TU2OF-Cu2.004Cu-OFECW009ACu-OFC10100CJ0ll
-SE-Cu2.007Cu-HCPCW021ACl0300
-SE-Cu2.007Cu-PHCCW020A-Cl0300-
T2E-Cu582.0065Cu-ETPCW004ACu-ETPC11000CH00
TP2SF-Cu2.009Cu-DHPCW024ACu-DHPCl  2200Cl  220
SF-Cu2.009Cu-DHPCW024ACu-DHPCl2200Cl  220
-SF-Cu2.009Cu-DHPCW024ACu-DLPCl  2200Cl 220
TP1SW-Cu2.0076Cu-DLPCW023ACu-DLPCl  2000C1201
H96CuZn52.022CuZn5CE500LCuZn5C21000C2100
H90CuZn102.023CuZnlOCW501LCuZnl0C22000C2200
H85CuZn152.024CuZnl5CW502LCuZn15C23000C2300
H80CuZn202.025CuZn20CW503LCuZn20C24000C2400
H70CuZn302.0265CuZn30CW505LCuZn30C26000C2600
H68CuZn332.028CuZn33CW506LCuZn35C26800C2680
H65CuZn362.0335CuZn36CW507LCuZn35C27000C2700
H63CuZn372.0321CuZn37CW508LCuZn37C27200C2720
HPb63-3CuZn36Pb1.52.0331CuZn35Pb1CW600NCuZn35Pb1C34000C3501
HPb63-3CuZn36Pb1.52.0331CuZn35Pb2CW60INCuZn34Pb2C34200-
H62CuZn402.036CuZn40CW509NCuZn40C28000C3712
H60CuZn38Pb1.52.0371CuZn38Pb2CW608NCuZn37Pb2C35000-
HPb63-3CuZn36Pb32.0375CuZn36Pb3CW603NCuZn36Pb3C36000C3601
HPb59-lCuZn39Pb22.038CuZn39Pb2CW6I2NCuZn38Pb2C37700C3771
HPb58-2.5CuZn39Pb32.0401CuZn39Pb3CW614NCuZn39Pb3C38500C3603
-CuZn40Pb22.0402CuZn40Pb2CW6I7NCuZn40Pb2C38000C3771
CuZn28Sn12.047CuZn28Sn1AsCW706RCuZn28Sn1C68800C4430
-CuZn31Si12.049CuZn31Si1CW708RCuZn31Si1C44300-
-CuZn20A122.046CuZn20A12AsCW702RCuZn20A12C68700C6870
QSn4-0.3CuSn42.1016CuSn4CW450KCuSn4C51100C5111
-CuSn52.1018CuSn5CW451KCuSn5C51000C5102
QSn6.5-0.lCuSn62.102CuSn6CW452KCuSn6C51900C5191
QSn8-0.3CuSn82.103CuSn8CW453KCuSn8C52100C5210
BZn12-24CuNi12Zn242.073CuNil2Zn24CW403JCuNil2Zn24C75700.
BZn 12-26CuNi18Zn272.0742CuNi18Zn27CW410JCuNil8Zn27C77000C7701
BZnl8-18CuNi18Zn202.074CuNi18Zn20CW409JCuNil8Zn20C76400C7521
-CuNi10Fe1Mn2.0872CuNi10Fe1MnCW352HCuNilOFeIMnC70600C7060
CuNi30Mn1Fe2.882CuNi30Mn1FcCW354HCuNBOMnlFeC71500C7150
