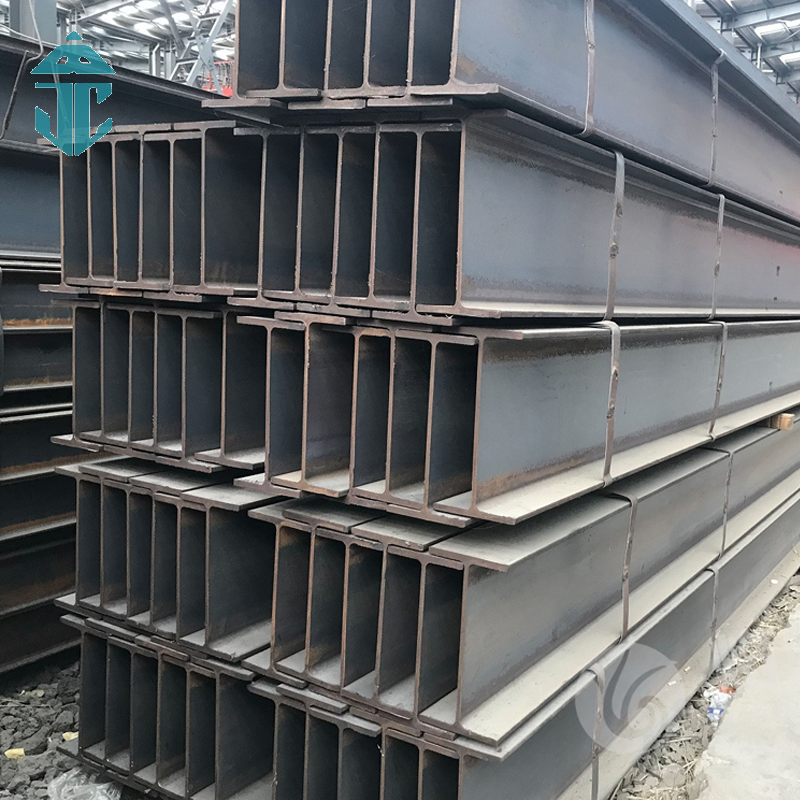

Stainless Steel H beam
H section steel is a new type of economic construction steel. Economic and reasonable h-beam section shape, good mechanical performance, rolling section on each extension point is relatively uniform, small internal stress, compared with ordinary beams, with large section modulus, light weight, save metals etc.. mainly used for large buildings that big cutting ability, good cross section stability (such as factories, high-rise building, etc.), and Bridges, ships, lifting transportation machinery, equipment foundation, support, foundation pile, etc.
+86 13182768889
wxbjc05@bjcmetal.com
Contact Us

◉ Product Details


Stainless Steel Description

Product NameStainless Steel H beam
Material Grade301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
201,202,202cu,204,409,409L,410,420,430,431,439,440,441,444
2205,2507,2906,330,660,630,631,17-4ph,17-7ph,  S318039 904L.etc
H*B100*100-900*300mm
T14.5-21mm
T27-35mm
Lead TimeStock or 3--10 days or according to quantity
Trade TermTelegraphic Transfer,T/T,Letter of Credit,L/C,Documents agayment,D/P

Chemical Properties of Frequently-used


UNSASTMENJISC%Mn%P%S%Si%Cr%Ni%Mo%
S201002011.4372SUS201≤0.155.5-7.5≤0.06≤0.03≤1.0016.0-18.03.5-5.5-
S202002021.4373SUS202≤0.157.5-10.0≤0.06≤0.03≤1.0017.0-19.04.0-6.0-
S301003011.4319SUS301≤0.15≤2.00≤0.045≤0.03≤1.0016.0-18.06.0-8.0-
S304003041.4301SUS304≤0.08≤2.00≤0.045≤0.03≤0.7518.0-20.08.0-10.5-
S30403304L1.4306SUS304L≤0.03≤2.00≤0.045≤0.03≤0.7518.0-20.08.0-12.0-
S30908309S1.4833SUS309S≤0.08≤2.00≤0.045≤0.03≤0.7522.0-24.012.0-15.0-
S31008310S1.4845SUS310S≤0.08≤2.00≤0.045≤0.03≤1.5024.0-26.019.0-22.0-
S316003161.4401SUS316≤0.08≤2.00≤0.045≤0.03≤0.7516.0-18.010.0-14.02.0-3.0
S31603316L1.4404SUS316L≤0.03≤2.00≤0.045≤0.03≤0.7516.0-18.010.0-14.02.0-3.0
S31703317L1.4438SUS317L≤0.03≤2.00≤0.045≤0.03≤0.7518.0-20.011.0-15.03.0-4.0
S321003211.4541SUS321≤0.08≤2.00≤0.045≤0.03≤0.7517.0-19.09.0-12.0-
S347003471.455SUS347≤0.08≤2.00≤0.045≤0.03≤0.7517.0-19.09.0-13.0-
S405004051.4002SUS405≤0.08≤1.00≤0.04≤0.03≤1.0011.5-14.5≤0.60-
S409004091.4512SUS409≤0.08≤1.00≤0.045≤0.03≤1.0010.5-11.75≤0.50-
S430004301.4016SUS430≤0.12≤1.00≤0.040≤0.03≤0.7516.0-18.0≤0.60-
S434004341.4113SUS434≤0.12≤1.00≤0.040≤0.03≤1.0016.0-18.0--
S444004441.4521SUS444L≤0.025≤1.00≤0.045≤0.03≤1.0017.5-19.5≤1.00-
S40300403-SUS403≤0.155.5-7.5≤0.04≤0.03≤0.5011.5-13.0≤0.60-
S4100004101.40006SUS410≤0.15≤1.00≤0.035≤0.03≤1.0011.5-13.5≤0.60≤1.00
S420004201.4021SUS420J10.16~0.25≤1.00≤0.04≤0.03≤1.0012.0-14.0≤0.75≤1.00
S440A440A1.4028SUS440A0.60~0.75≤1.00≤0.04≤0.03≤1.0016.0-18.0-≤0.75
S32750SAD25071.441
≤0.03≤1.2≤0.035≤0.02≤0.8024.0-26.06.0-8.03.0-5.0
S31803SAF22051.4462
≤0.03≤2.0≤0.03≤0.02≤1.0021.0-23.04.0-6.52.5-3.5
N08904904L1.4539
≤0.0.3≤2.0≤0.035≤0.03≤1.0018.0-20.023.0-25.03.0-4.0

Stainless Steel Material Properties

Type No.Tensile Strength, ksiYield Strength, ksiElongation in 2 inches, %Reduction of Area, %Brinell Hardness
301110406070165
30290405570150
30390355055160
30485355570150
304L80305570140
31685356070150
316L78305565145
32185355565150
41075403570155
41675403065155
420955025-241
430F80452550165
15-516014515-330
17-4 (Condition A)1501101045332

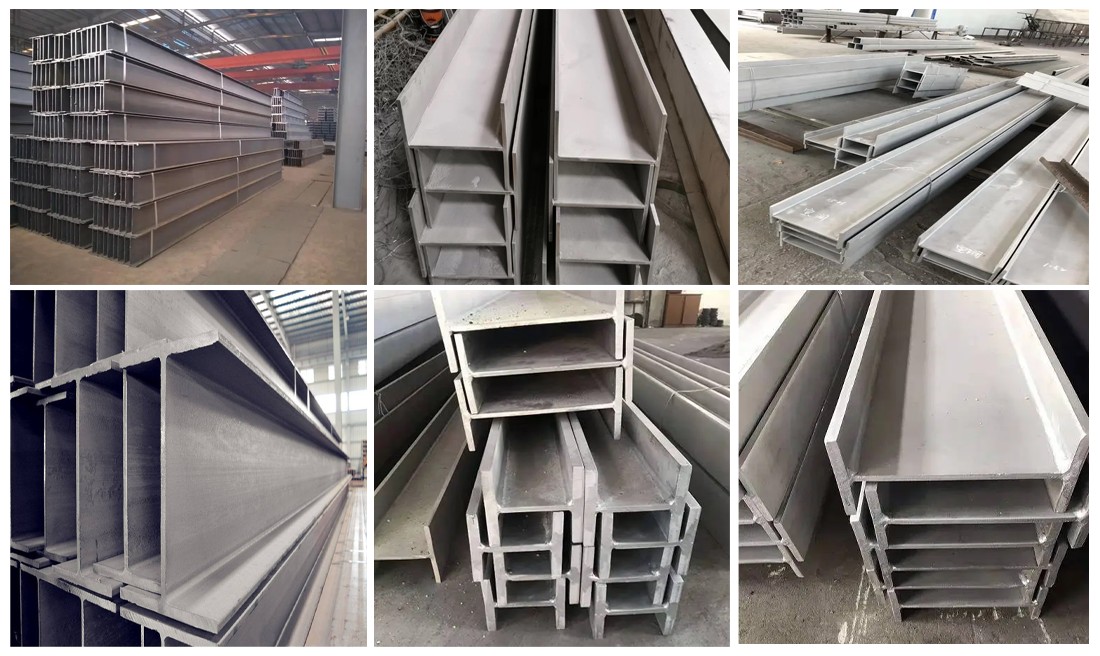

◉ Product Show


- Customised processing service -

In order to meet the processing request of more customers, we have added three new machining center divisions, first one is 5000W laser machining center, which can cut and bend according to customer's size, sandblasting machining center, painting processing center, With high quality products and top after-sales service, we have won trust and support of customers from all over theworld. Our steel products have been exported to 80 countries and areas: Chile, Peru, Russia, Mongolia, Philippines, Egypt, SaudiArabia, India, United States, Canada Australia and so on.

◉ FAQ

Q1 : Are you a manufacturer?
A1 : Our company is also a very professional steel product manufacturer. We can also provide various steels.
Q2 : Do you provide samples ? is it free or extra ?
A2 : The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q3 : How long is your delivery time?
A3 : Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
Q4: Will you delivery the goods on time ?
A4: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q5 : Do you accept the third party inspection ?
A5 : Yes absolutely we accept.
Q6: What is your after-sale service ?
A6: We provide after-sale service and offer 100% guarantee on our products.

◉ Online Consultation

Reliable detection！

We accept formal third-party testing institutions for testing, we can also send samples to you free of charge, customer satisfaction shopping experience is always our pursuit
